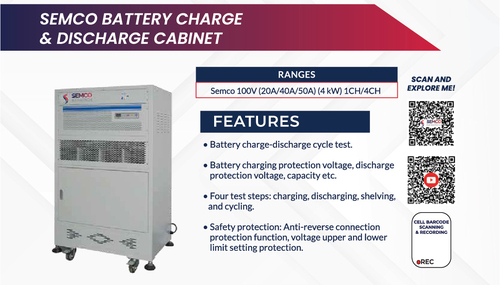

Semco SI BCDS 100V (20/50A) (4kW) 4CH

Product Description

Charge and discharge function with constant current and constant voltage charging function constant function charge and discharge the battery and record the battery capacity current discharge

Charge and discharge interface fully meet the requirements of charging and discharging the same port and charging and discharging separate ports of the battery pack that is 2 wires (p plus+ p minus) and 3 wires (p plus p minus c minus) at the same time it can age the power tool battery (ch plus p plus p minus) with positive plate charge protection and negative plate discharge protection

Check voltage protection by charging and discharging the battery check whether the batterys charge protection and discharge protection work

Safety protection anti reverse connection protection function voltage upper and lower limit setting protection safe discharge current protection

Online mode if the instrument is single or less than 5 it can be connected to the pc through the serial port adopted by more than 5 sets network connection mode down pc electricity the brain terminal only needs to provide a network port to control up to 60 instruments

Control system the software system adopts the classic and mature c s mode there are two communication methods serial port and network the serial port can realize the accurate communication of several instruments in a short distance and the network can realize the accurate communication of multiple instruments in a long distance

Host computer software windows based operation interface the SQL database is used to store test data which greatly facilitates the staff to query and export data online according to the battery bar code time and device number the charge and discharge aging curve can be viewed and the curve can be exported
