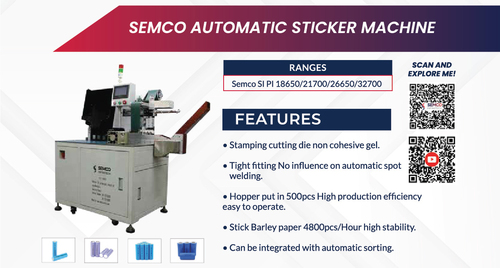

Semco SI PI 18650 - Automatic Sticker Machine
775000.00 INR/Piece
Product Details:
- Usage Industrial
- Product Type Automatic Sticker Machine
- Rated Voltage 220 Volt (V)
- Dimension (L*W*H) 150*850*160 Centimeter (cm)
- Function (1) Working voltage: AC 220V±10%/50Hz, power: ≤2 KW (2) Working gas source: 0.5~0.7 Mpa (dry gas) (3) The efficiency of the sticker sorting machine: ≥ 65PPM (4) Adapt to battery specifications: 18650 finished batteries (5) Equipment weight: about 400kg (6) Equipment qualification rate: ≥99.5% (7) Equipment utilization rate: ≥98% (8) Dimensions: 1500 (length) × 850 (width) × 1600 (height) mm (9) Equipment frame material: high-quality thick cold-rolled plate, made of aluminium profile. (10) Highland barley paper specifications: width 98mm, length ≤200m/roll, total thickness 0.4mm (green barley paper 0.3mm + white paper 0.1mm) (11) Specification of concentric circles of punching tools: outer diameter 17.8mm inner diameter 10mm.
- Color Silver
- Weight 400 Kilograms (kg)
- Click to View more
X
Semco SI PI 18650 - Automatic Sticker Machine Price And Quantity
- 775000.00 INR/Piece
- 1 Unit
Semco SI PI 18650 - Automatic Sticker Machine Product Specifications
- 400 Kilograms (kg)
- 150*850*160 Centimeter (cm)
- 220 Volt (V)
- 1 Year
- Automatic Sticker Machine
- (1) Working voltage: AC 220V±10%/50Hz, power: ≤2 KW (2) Working gas source: 0.5~0.7 Mpa (dry gas) (3) The efficiency of the sticker sorting machine: ≥ 65PPM (4) Adapt to battery specifications: 18650 finished batteries (5) Equipment weight: about 400kg (6) Equipment qualification rate: ≥99.5% (7) Equipment utilization rate: ≥98% (8) Dimensions: 1500 (length) × 850 (width) × 1600 (height) mm (9) Equipment frame material: high-quality thick cold-rolled plate, made of aluminium profile. (10) Highland barley paper specifications: width 98mm, length ≤200m/roll, total thickness 0.4mm (green barley paper 0.3mm + white paper 0.1mm) (11) Specification of concentric circles of punching tools: outer diameter 17.8mm inner diameter 10mm.
- Silver
- Industrial
Semco SI PI 18650 - Automatic Sticker Machine Trade Information
- 5 Unit Per Day
- 5 Days
- Contact us for information regarding our sample policy
- Heavy Duty Wooden Box with Pallet
- All India
Product Description
Automatic Cell Sticker Machines for lithium Ion Battery use an automated device for pasting paper into cylindrical cells called a full box feeding cell
The PLC controlled stepping motor and cylinder of this apparatus carried out the task of adhering the cell insulating paper The design of the mechanical structure is straightforward and generous and the system performance is consistent
Automatic Cell Sticker Machines for lithium Ion Battery are appropriate for use in battery pack assembly plants producing battery packs for low speed cars electric bicycles power tools and energy storage among other battery types
Technical Specification
| Usage/Application | Battery |
| Frequency | 50 Hz |
| Voltage | 220 |
| Production Capacity | 4800 |
| Brand | Semco |
| Label Sticker Length | 18650 |
| Label Sticker Width | 32650 |
