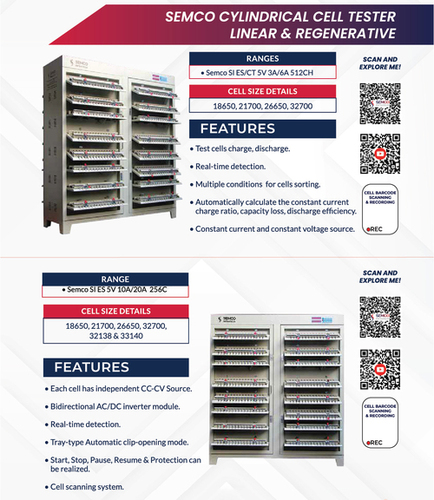

Semco SI CT 5V 3A 512CH - Linear

Product Description

The constant voltage and constant current charging is safe and smooth and the voltage and current sampling output of the device is controlled through the four wire system connection for soft start so as to make a safe and smooth transition in the constant voltage and constant current charging process to avoid the occurrence of peak damage to the battery

Each CH can perform constant current and constant voltage charge and constant current discharge test on the512 Cells that meet the voltage range

Using the constant current constant voltage power supply of the invention patent there is no impact from constant current to constant voltage switching which is especially suitable for the requirements of lithium ion battery charging

Equipment and computer interface the Ethernet interface between the equipment and computer can

ensure the stability and real time of remote data acquisition and the operation of the equipment can be

activated by the office network and remote monitoring workshop in real time

Each battery fully has its own constant current and constant voltage source and its own loop does not affect each other

Real time detection of each cells voltage charging the first constant current charging when the battery voltage reaches the set value will be smoothly transferred to constant voltage charging to meet the set time or current termination conditions the charge is over During constant current discharge when the battery voltage is lower than the set value the discharge is completed and the corresponding battery indicator lights up

Multiple conditions (capacity time open circuit voltage discharge platform etc) for battery sorting

Automatically calculate the constant current charge ratio capacity loss discharge efficiency average voltage median voltage and other data

This equipment is to test battery charge discharge and related characteristics Through software programming the operator can charge and discharge the battery with any current or voltage within testing range

Curve analysis and processing curve analysis function Can flexibly select the cycle that needs to be displayed a variety of curve combinations (such as voltage current capacity time capacity voltage cycle times charge discharge end voltage and etc) Graphics can bearbitrarily moved horizontal longitudinal magnified or reduced to check the voltage current capacity cell voltage and other data details Can compare one data file for different cycle data or compare several data file curves at onetime
