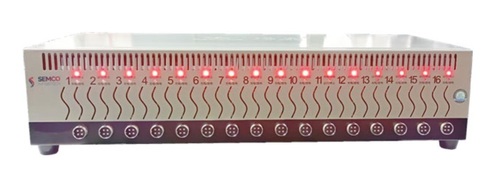

Model No SI CT 5V 10A 16CH
Channel No 16
Basic Function Charge
Discharge auto cycle charge discharge balance maintenance internal resistance test capacity grading and matching testdata analysis and comparison
Applicable batteries LiFePO4 ternarylithium LiCoO Ni mh NiCd and so on
Power sSupply AC200V245V50/60HZ
Input power full loading1650WNo loading 80W
Ambient temperature less then 35 degree Celsius
Ambient humidity, less then 90 percent
High voltage insulation between channels,AC1000V/2min normal
Cell connection method probes andtest cables
Communication port lan
Operationmethods software
|
|
![]() |
