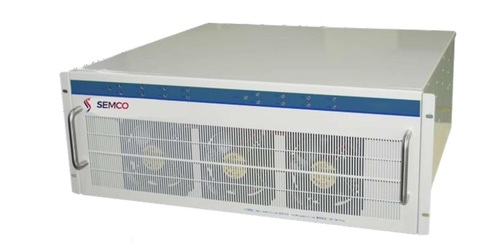

Semco SI BCDS 5V 120A 16CH

Product Description

High precision calibration charging current dischargecurrent charging voltage and discharge voltage are all calibrated by Agilentwith high precision to ensure the accuracy of current and voltage within 0point 5 percent

Independent channels with configurable parameter andcondition setting for each individual channel

Equipped with complete input and output devices hardwareand software protection polarity reverse protection power failure protectionand etc

Precise control without overshoot during CC CV and CV CCtransition

Modular design convenient for maintenance

Strong software system and friendly HMI (Human Machine Interface)

Charge and discharge test for prismatic cell tester andpartition capacity and cycle life and other performance tests software functionfriendly human machine interface

Segmental range design in the operation of the equipmentaccording to the different output value of the internal intelligent adjustmentof the range of the equipment to ensure the high precision of each stage

Excellent thermal performance unique duct design throughforced air cooling to reduce the impact of high temperature on equipmentperformance the dual fan mode is adopted to carry out forced ventilation andcooling for the power cooling module and the thermal imager is used for thermalsimulation tests to ensure that the cooling device works within a reasonabletemperature range (make sure only use prismatic cells)

Channels can be detachable can be customized according tothe needs of each channel in the same box in free parallel to be compatiblewith a variety of types of battery test give full play to the same type of multipurpose equipment save equipment costs for customers

Multiple conditions (capacity time open circuit voltagedischarge platform etc) for battery sorting

Automatically calculate the constant current charge ratiocapacity loss discharge efficiency average voltage median voltage and otherdata

The power supply is independent to ensure that thecircuit output is even in the process of power supply operation and there is noprotection problem

Curve analysis and processing curve analysis function canflexibly select the cycle that needs to be displayed a variety of curvecombinations (such as voltage current capacity time capacity voltage cycletimes charge discharge
