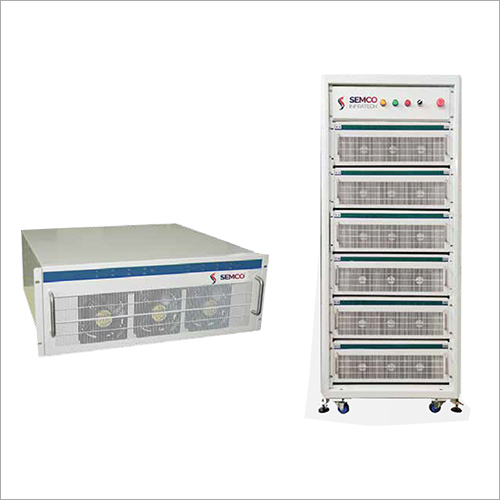

Battery Charge and Discharge Cabinet for Lithium ion Battery
960000 INR/Piece
Product Details:
X
Battery Charge and Discharge Cabinet for Lithium ion Battery Price And Quantity
- 1 Piece
- 960000 INR/Piece
Product Description
| Cabinet size | 800 x 520 x 1370 mm |
| Current Charging accuracy | +-(0.2% of reading + 0.2% of range) |
| Current Charging range | 200~20000mA |
| Current Discharge range | 200~40000mA |
| Current Precision | +-(0.2% of reading + 0.2% of range) |
| Data logging interval | >5S |
| Discharge power | <4000 W |
| Frequency | 50 Hz |
| Inspection time | Receive real time <2S |
| Number Of Channel | 1 |
| Recharge Constant voltage cut-off current | Lowest 200 mA |
| Timing range | 0~999 hours/step |
| Country of Origin | Made in India |
| Voltage | 10~100V |
| Phase | 3 Phase |
| Brand | Semco |
The aging cabinet is mainly used for testing the charging and discharging cycle of finished lithium batteries. The testing items include: battery charging protection voltage, discharging protection voltage, capacity, etc. The equipment has charging, discharging, shelving, and cycling four testing steps.
Features:
1. Battery Charge-Discharge cycle test.
2. Battery charging protection voltage, discharge protection voltage, capacity etc.
3. The device has 4 test steps: Charging, discharging, Shelving and cycling.
4. Charge and discharge function: with constant current and constant voltage charging function, constant current discharge function.
5. Check voltage protection: By charging and discharging the battery.
6. Safety protection: Anti -reverse connection protection function, voltage upper and lower limit setting protection.
7. If the instrument is single or less than 5, it can be connected to the PC through the serial port; Adopted by more than 5 sets Network connection mode Down, PC Electricity The brain terminal only needs to provide a network port to control up to 60 instruments.
8. The software system adopts the classic and mature C/S mode. There are two communication methods: serial port and network. The serial port can realize the accurate communication of several instruments in a short distance, and the network.
9. Windows-based operation interface, The SQL database is used to store test data, which greatly facilitates the staff to query and export data online. According to the battery bar code, time, and device number, the charge and discharge aging curve can be viewed, and the curve can be exported. can realize the accurate communication of multiple instruments in a long distance.
10. Fully meet the requirements of charging and discharging the same port and charging and discharging separate ports of the battery pack, that is 2 wire (P+ P-) and 3 wires (P+ P- C-) at the same time, it can age the power tool battery (CH+ P+ P-) with positive plate charge protection and negative plate and discharge protection.
Other Details
- Battery chamber: To place battery and connect battery.
- Router: For Network communication (M/C to Software)
- Display: For view status
- Port: For communicate to the software
- MCB: To ON/OFF Machine
