Battery Balancer

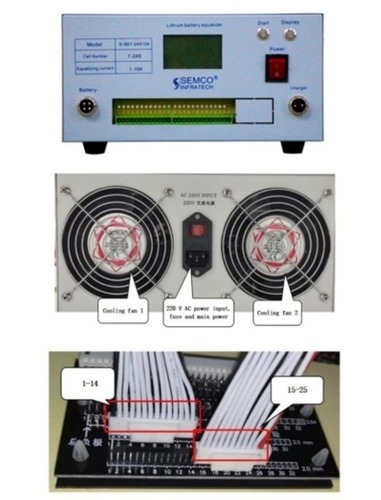

Product Image (Semco SI BE 7-24S 10A)

Smart Battery Voltage Equalizer

Price: 100000 INR/Unit

When the lithium battery is assembled or the finished battery pack is stored for a long time the voltage between the individual cells is inconsistent due to the difference of static power consumption of each circuit of the protection plate and the self discharge rate of each single cell during the charging process the voltage rise speed of each cell is different which results in the increase of the voltage difference of the battery pack the highest voltage series of single body triggers the BMS over voltage protection in advance which causes the whole group of batteries to stop charging the low voltage monomer cannot be full of electricity and the high voltage monomer cannot discharge the power the battery capacity is reduced and the life is reduced equalization is the key technology to solve the difference of cell unit the common methods are discharge equalization and charging equilibrium the balance has the effect of balancing voltage on the lithium battery group so as to achieve the effect of full charge and full discharge of battery capacity and make the battery group recover the maximum capacity and extend the service life of the battery pack Discharge equalization also known as passive equalization discharge equalization is to take the lowest voltage of the whole battery as the reference value and release the excess energy in other single cells with high voltage to reduce the voltage so as to achieve the purpose of voltage balance Charge equalization also known as active equalization in the charging process the cell with high voltage is discharged the voltage is pulled down the cell with low voltage continues to charge and the voltage continues to rise stop equalization until all cell voltages reach the set balance value each cell is controlled by an independent equalization circuit

Send Inquiry
Request To Call Back

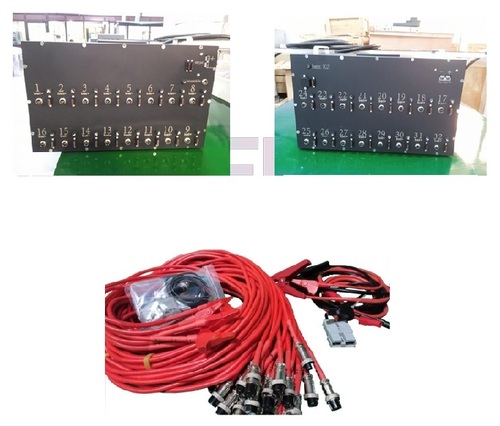

Product Image (Semco SI BB 32S 10A)

Semco SI BB 32S 10A

Price: 175000 INR/Unit

Device name a 32 way fully automatic lithium equalizer Equipment model Semco SI BB 32S 10A Support the charge and discharge current the charge and discharge port supports 20 A plus 50 A Display function and touch handling displays all individual battery voltages and can touch the handling Support battery serial number 1 to 32 strings Support balanced current the 1 to 10A current is adjustable Power consumption at full load 500 W for LFP and 600W for NMC Support battery types lithium ion battery Functions support for multi machine series use Video Link https://www.youtube.com/watch?v=phoETKO7tIM

Send Inquiry
Request To Call Back
Product Image (Semco SI BB 24S 10A)

Semco SI BB 24S 10A

Price: 135000 INR/Unit

Device name A 24 way fully automatic lithium equalizer Equipment model Semco SI BB 24S 10A Support the charge and discharge current the charge and discharge port supports 20A plus 50A Display function and touch handling displays all individual battery voltages and can touch the handling Support battery serial number 1 to 24 strings Support balanced current the 1 to 10A current is adjustable power consumption at full load ≥ 500W for LFP and ≥ 600W for NMC Video Link https://www.youtube.com/watch?v=phoETKO7tIM

Send Inquiry
Request To Call Back

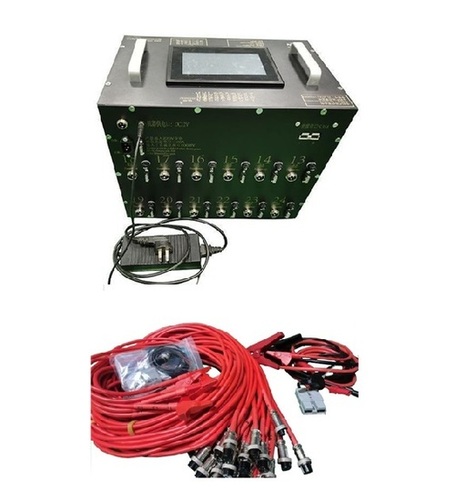

Product Image (Semco SI BB 24S 20A)

Semco SI BB 24S 20A

Price: 175000 INR/Unit

Device name A 24-way fully automatic lithium equalizer Equipment model Semco SI BB 224S - 20A Support the charge and discharge current the charge and discharge port supports 20A plus 50A Display function and touch handling displays all individual battery voltages and can touch the handling Support battery serial number 1 to 24 strings Support balanced current the 1 to 20A current is adjustable Support battery types lithium ion battery

Send Inquiry
Request To Call Back
Product Image (Semco SI BE 124 2A)

SI BE 124 2A - Semco Battery Equalizer

Price: 105000 INR/Unit

1 The maximum allowable input voltage range of the power supply 176V to 264V 2 The maximum allowable range of product working environment temperature minus 40 degree C to 60 degree C 3 The maximum allowable range of product working environment humidity ≤ 90percent no condensation no strong vibration no corrosive gas 4 The maximum allowable storage temperature of the equipment minus 55 degree C to 80 degree C (Note The equipment cannot be stored at the highest or lowest limit temperature for a long time) 5 Overall size (a) (24 series model) length × width × height 300×220×150mm 6 Total Weight (a) 24 strings 7KG (Including output wiring harness) Video Link https://www.youtube.com/watch?v=29ATVMVwsr8

Send Inquiry
Request To Call Back
Product Image (Semco SI BE 2-24S 18A)

Semco SI BE 2-24S 18A Smart Battery Voltage Equalizer

Price: 160000 INR/Unit

This equipment is energy consuming balance (passive balance) which is to balance the discharge method of single cells Due to the differences in the battery cells the cell voltage rises at different speeds during the series charging process The cells with high voltage are charged first which triggers the over voltage protection of the BMS system therefore the cells with low voltage cannot be fully charged during the discharging process the cells with low voltage are discharged first The vicious circle causes the pressure difference to become larger and larger which causes the capacity of the battery pack to decrease resulting in a severe reduction in the cruising range Therefore it is necessary to repair the pressure difference of the battery pack to restore the current maximum capacity guarantee the performance and life of the lithium battery pack The equalizer is an indispensable tool for the production and maintenance of lithium battery packs There are several common equalization methods charge equalization method during the charging process the high voltage cell is discharged the voltage is pulled down and the low voltage cell continues to be charged and the voltage rises until the voltage of all cells reaches the set balance value Discharge equalization method set the equalization termination voltage and discharge all cells until the voltage of each cell is consistent automatic balance method during the charging or discharging process the energy of the monomer is intelligently distributed Video Link https://www.youtube.com/watch?v=QXUZ8GaA7Hw

Send Inquiry
Request To Call Back
Product Image (Semco SI BE 2-24S 18A)

Semco SI BE 2-24S 18A

Price: 160000 INR/Unit

This equipment is energy consuming balance (passive balance) which is to balance the discharge method of single cells due to the differences in the battery cells the cell voltage rises at different speeds during the series charging process the cells with high voltage are charged first which triggers the over voltage protection of the BMS system therefore the cells with low voltage cannot be fully charged during the discharging process the cells with low voltage are discharged first the vicious circle causes the pressure difference to become larger and larger which causes the capacity of the battery pack to decrease resulting in a severe reduction in the cruising range therefore it is necessary to repair the pressure difference of the battery pack to restore the current maximum capacity guarantee the performance and life of the lithium battery pack the equalizer is an indispensable tool for the production and maintenance of lithium battery packs There are several common equalization methods charge equalization method during the charging process the high voltage cell is discharged the voltage is pulled down and the low voltage cell continues to be charged and the voltage rises until the voltage of all cells reaches the set balance value Discharge equalization method set the equalization termination voltage and discharge all cells until the voltage of each cell is consistent automatic balance method during the charging or discharging process the energy of the monomer is intelligently distributed and the pressure difference is automatically controlled to achieve the purpose of balance Video Link https://www.youtube.com/watch?v=QXUZ8GaA7Hw

Send Inquiry
Request To Call Back

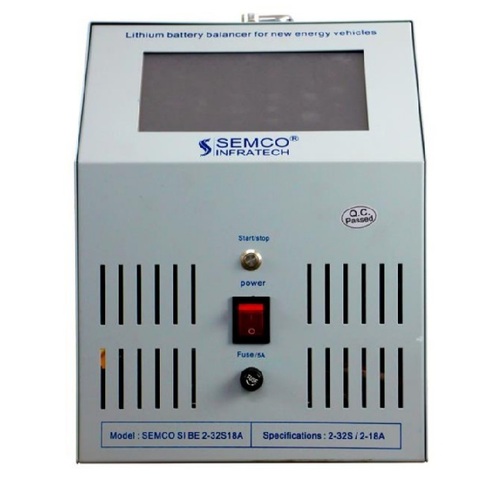

Product Image (Semco SI BE 2-32S 18A)

Semco SI BE 2-32S 18A Smart Battery Voltage Equalizer

Price: 190000 INR/Unit

This equipment is energy consuming balance (passive balance) which is to balance the discharge method of single cells due to the differences in the battery cells the cell voltage rises at different speeds during the series charging process the cells with high voltage are charged first which triggers the over voltage protection of the BMS system therefore the cells with low voltage cannot be fully charged during the discharging process the cells with low voltage are discharged first the vicious circle causes the pressure difference to become larger and larger which causes the capacity of the battery pack to decrease resulting in a severe reduction in the cruising range therefore it is necessary to repair the pressure difference of the battery pack to restore the current maximum capacity guarantee the performance and life of the lithium battery pack the equalizer is an indispensable tool for the production and maintenance of lithium battery packs There are several common equalization methods charge equalization method during the charging process the high voltage cell is discharged the voltage is pulled down and the low voltage cell continues to be charged and the voltage rises until the voltage of all cells reaches the set balance value Discharge equalization method set the equalization termination voltage and discharge all cells until the voltage of each cell is consistent automatic balance method during the charging or discharging process the energy of the monomer is intelligently distributed and the pressure difference is automatically controlled to achieve the purpose of balance Video Link https://www.youtube.com/watch?v=QXUZ8GaA7Hw

Send Inquiry
Request To Call Back
